S550GD+AZ150 High-Strength Steel
The main structure uses high-strength aluminum-zinc coated S550GD+AZ150 steel. The tensile strength is over 550 MPa, giving the light steel frame a stronger base for walls, floors, trusses and connection details.
Structure Part / Product 01
Halcyon steel house structures can be configured according to the building regulations of different regions. Steel profile specifications, member spacing, bracing and connection details are reviewed together with the project drawings so the structure package can match the required local design standard.
We can also use historical weather data from the project location to support wind, snow and other load design checks. This helps the house structure respond to the real climate conditions of the site before the final material scope and quotation are confirmed.
The structure system is reviewed around four core product advantages: high-strength coated steel, corrosion resistance for different climates, flexible framing for complex house shapes, and VT-supported load design for floors, wind and snow requirements.
The main structure uses high-strength aluminum-zinc coated S550GD+AZ150 steel. The tensile strength is over 550 MPa, giving the light steel frame a stronger base for walls, floors, trusses and connection details.
Excellent corrosion resistance is supported by Al-Zn coating options from 150g to 275g. This coating range can meet the climate exposure requirements of most global regions, including humid and coastal project environments.
The steel structure itself is highly flexible. Profiles, trusses, wall panels, openings and connection nodes can be coordinated to realize complex architectural shapes rather than limiting the house to a simple box form.
VT structure software can be used to review the floor load, wind load and snow load of the house. This helps the structure design meet the requirements of the design drawings and relevant engineering codes.
These two wall-frame details explain how the structure supports flexible MEP routing during site work, and how screw-fixed structural boards create a sheathing effect that improves wall stability.

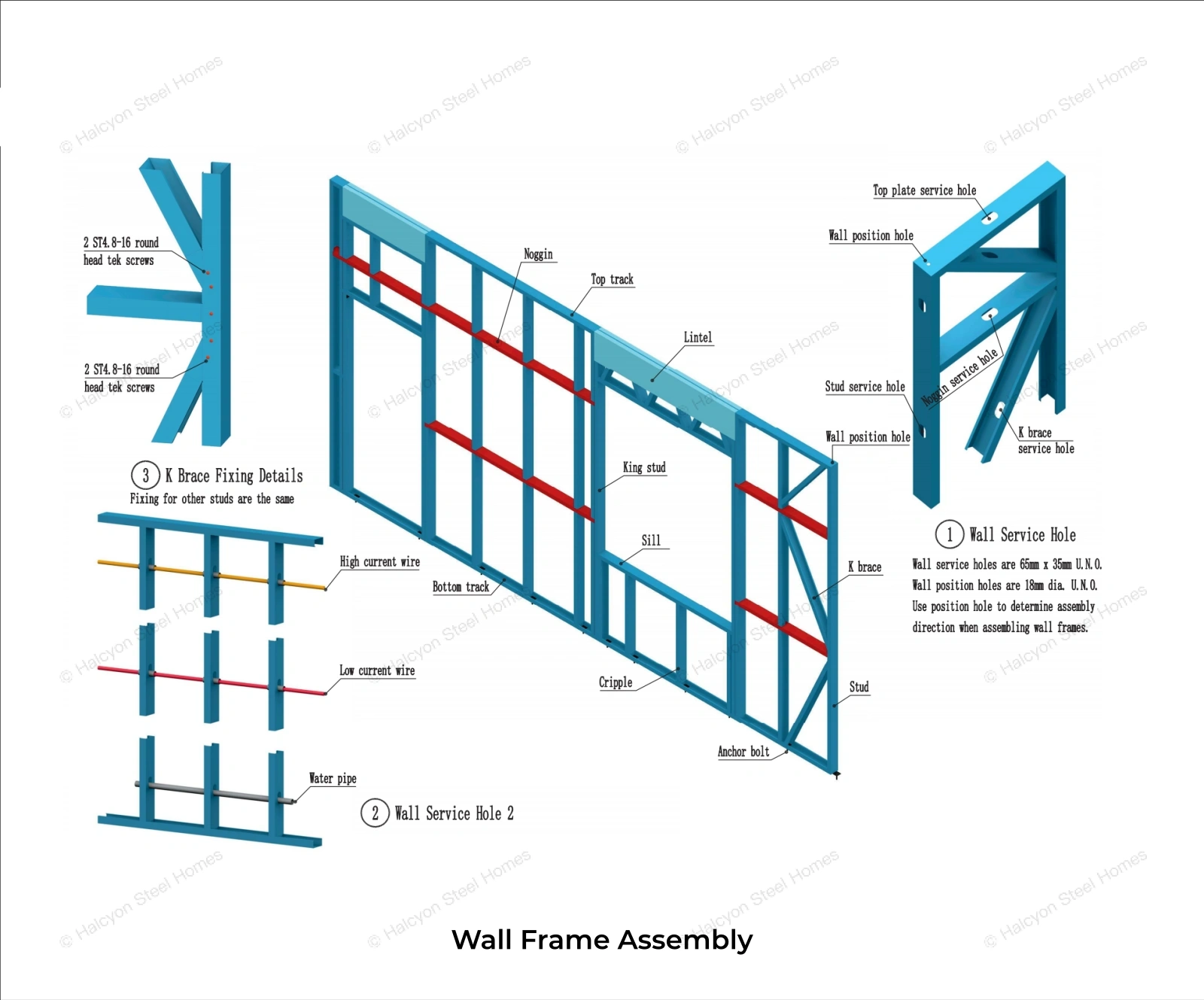

The light steel wall frame can include service holes through studs, tracks and nogging members. Electrical conduits, switch boxes, sockets, low-current lines, high-current wiring and other service routes can be arranged more flexibly according to the final room layout.

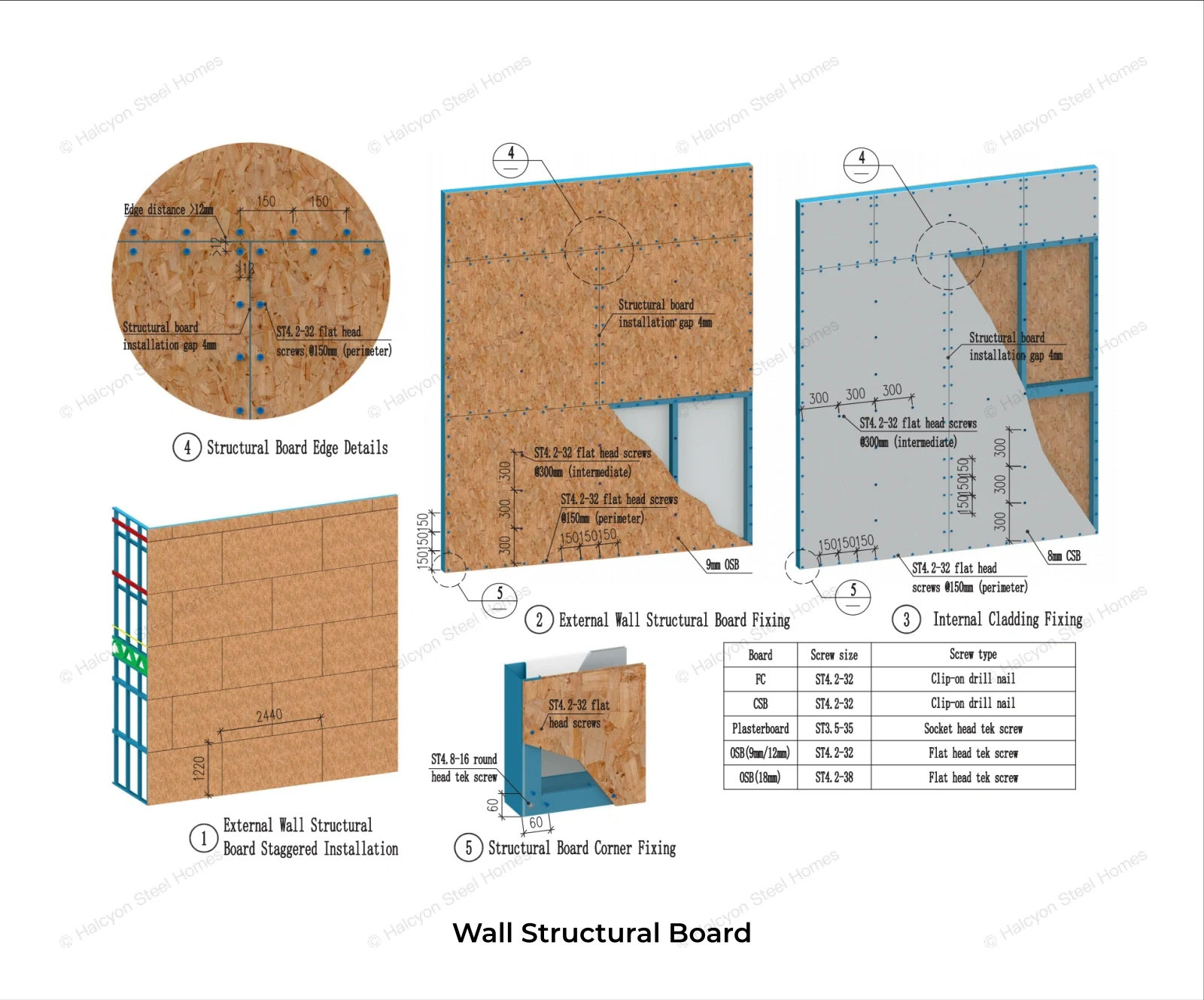

Beyond the calculated structural load of the steel frame itself, screw-fixed internal and external structural boards can create a sheathing effect on the light steel wall surface. This helps the wall panel work as a more stable structural unit.
Before quotation, the structure scope should be reviewed from drawings and project conditions. This keeps the material proposal connected to safety, durability and the real load requirements of the site.

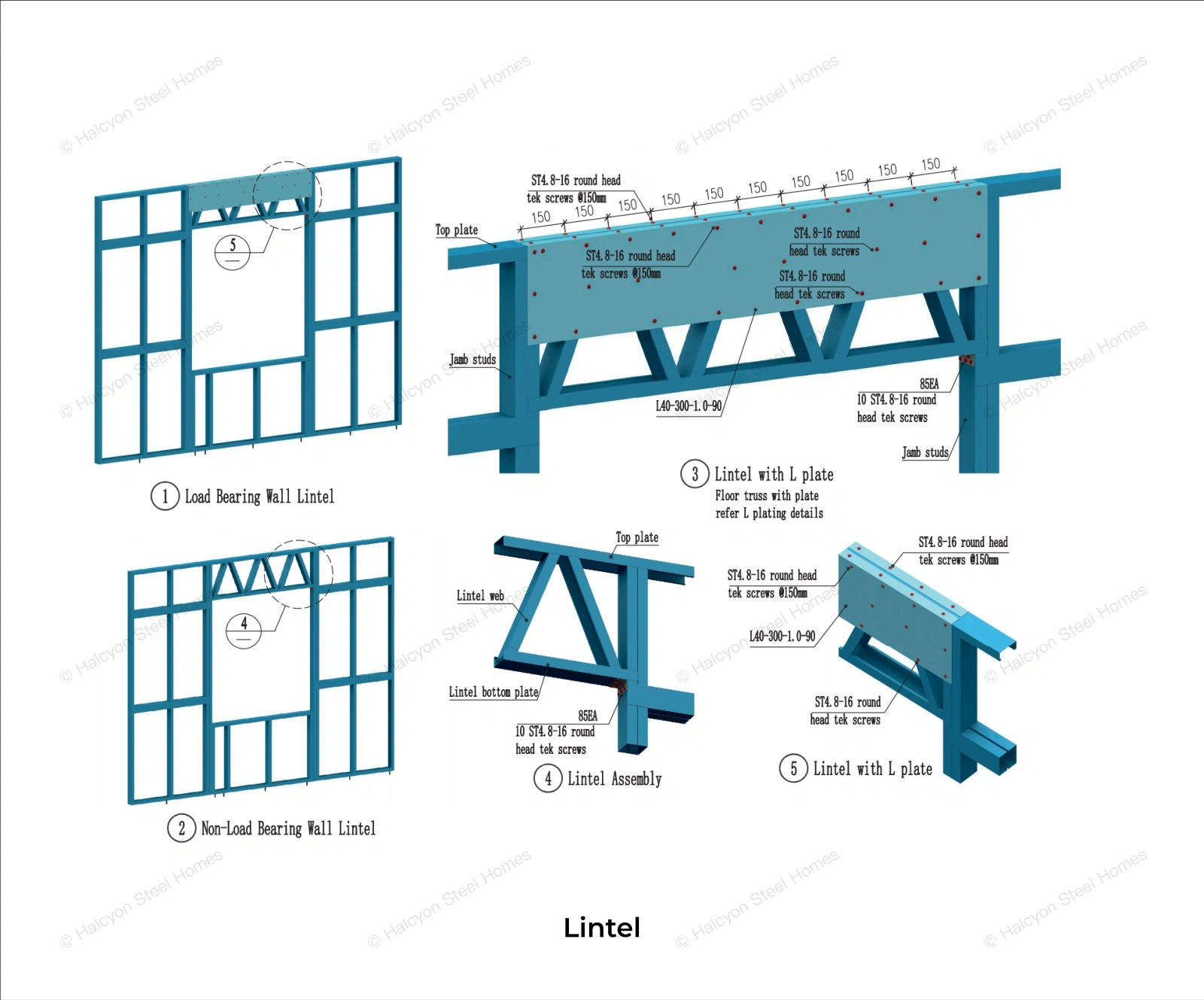

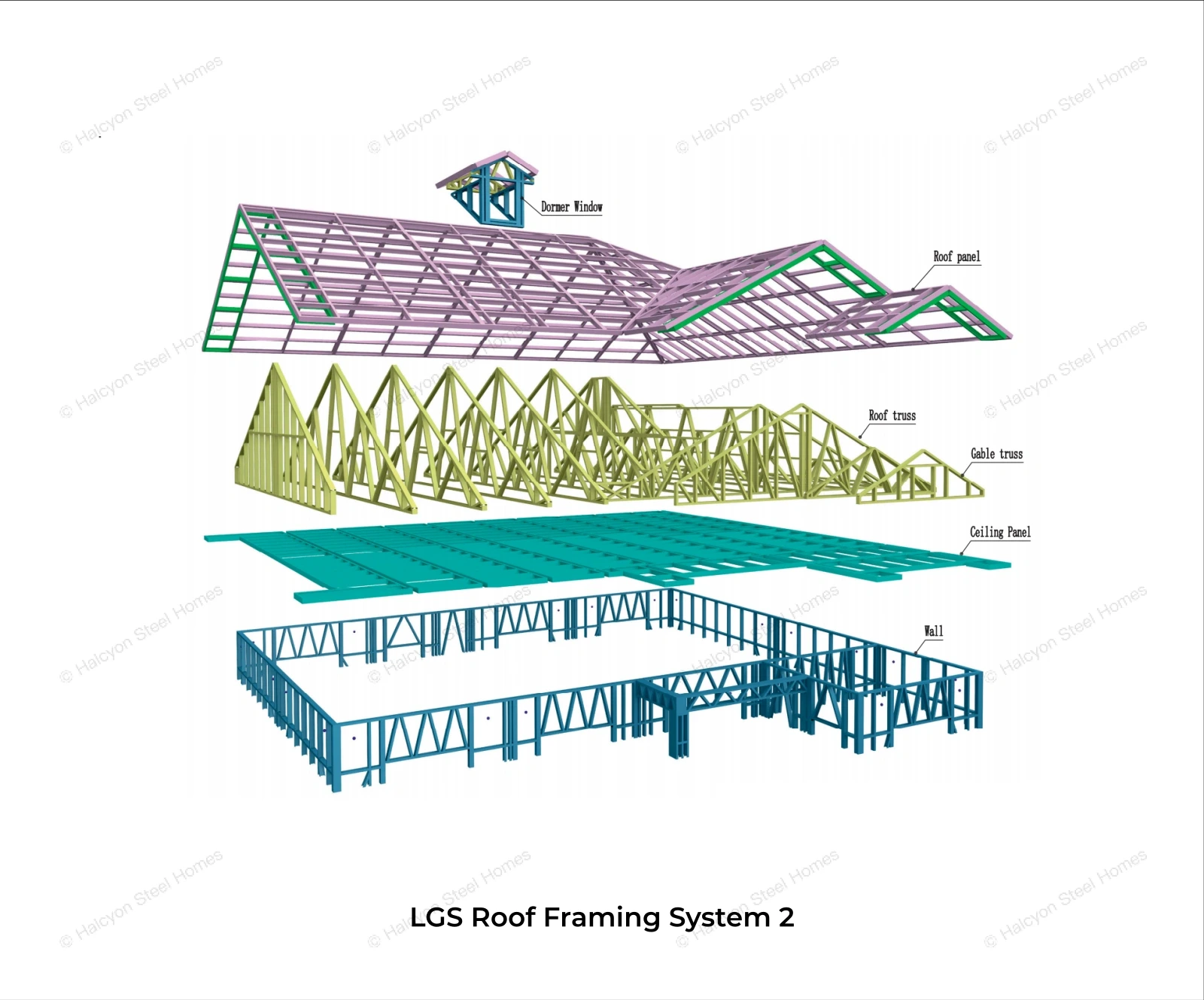

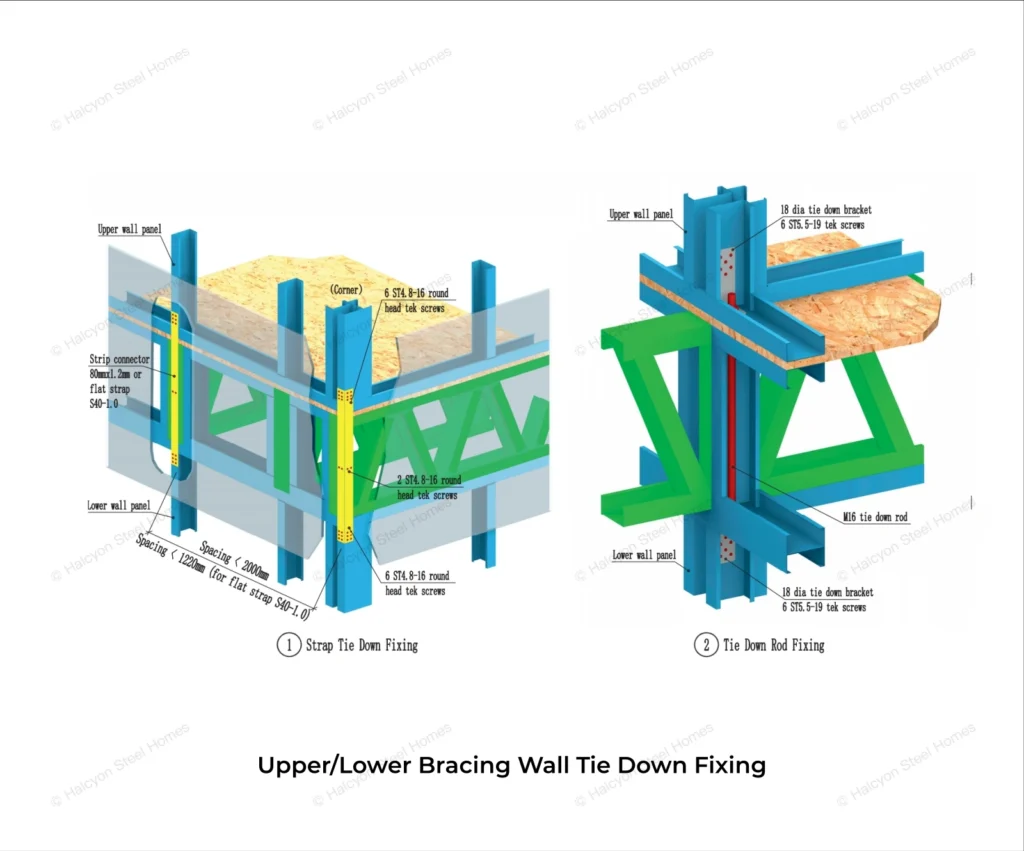

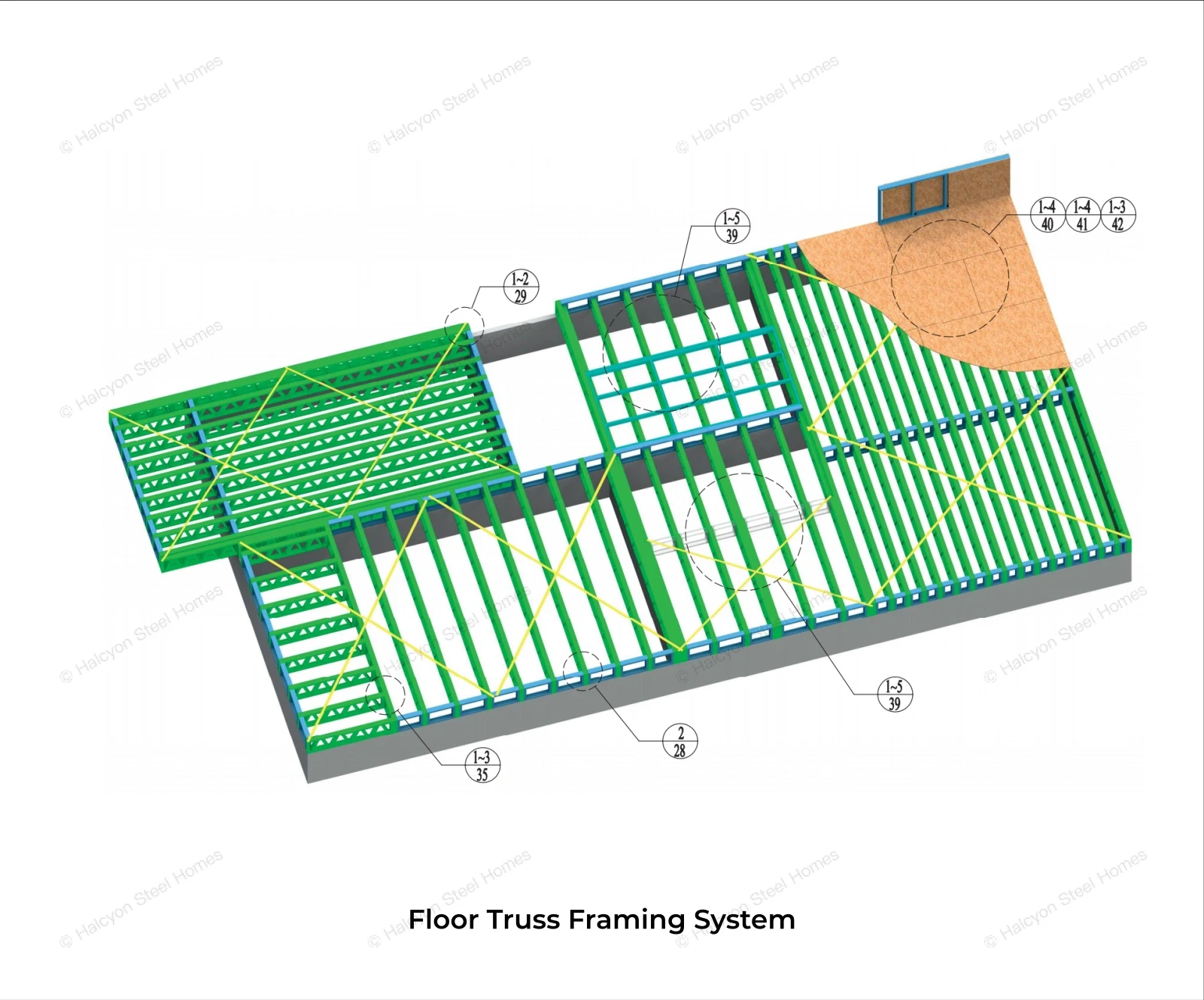

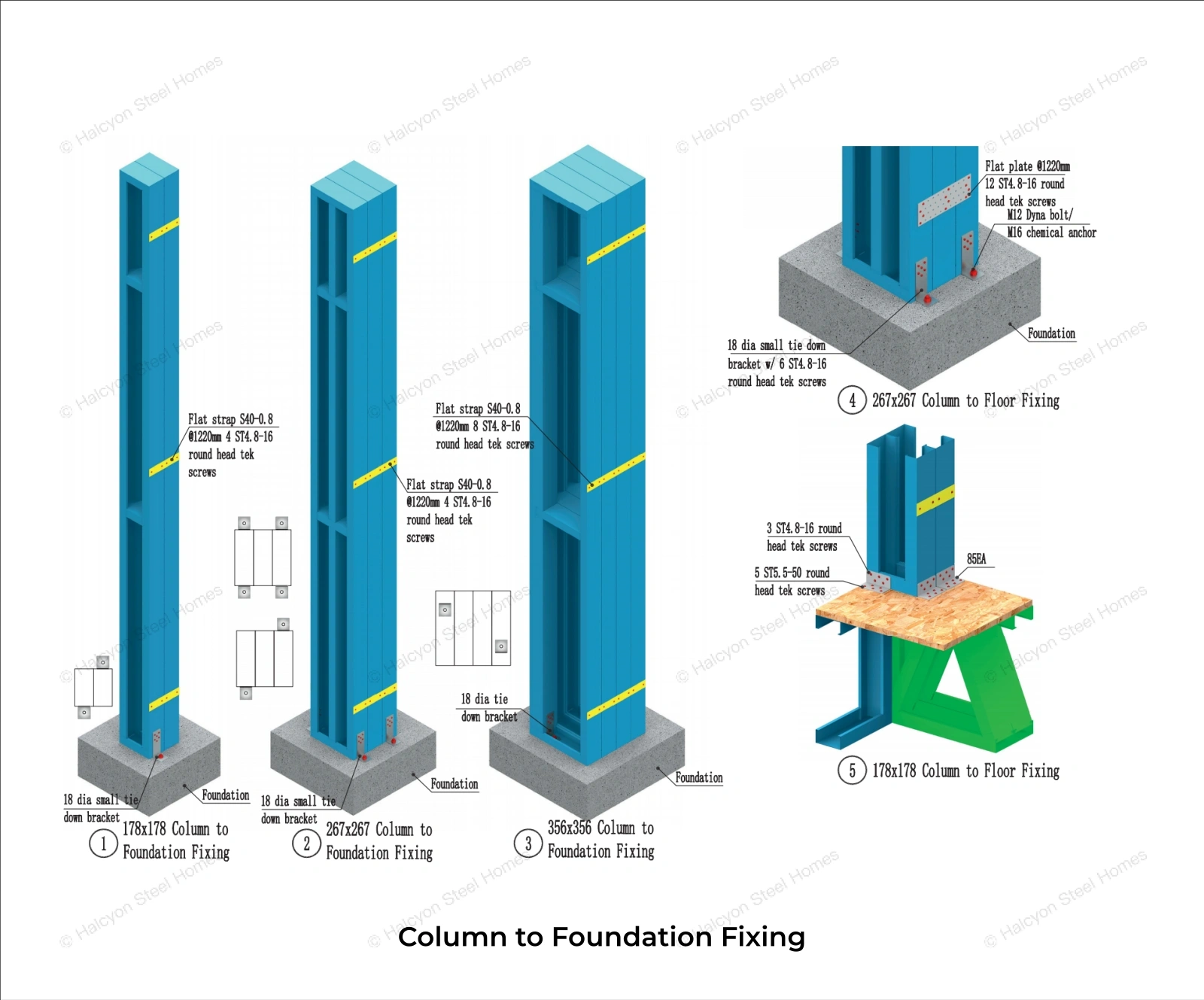

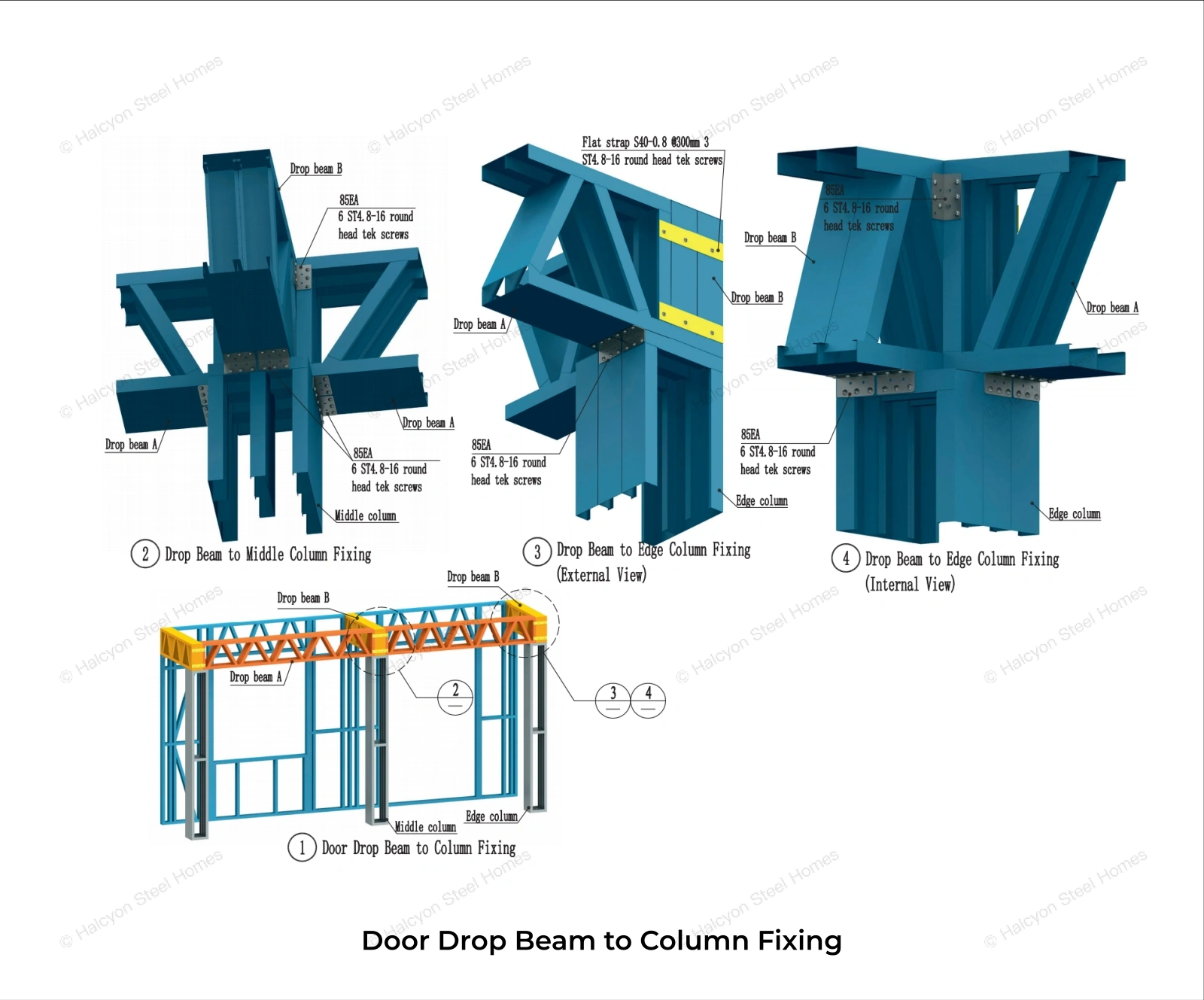

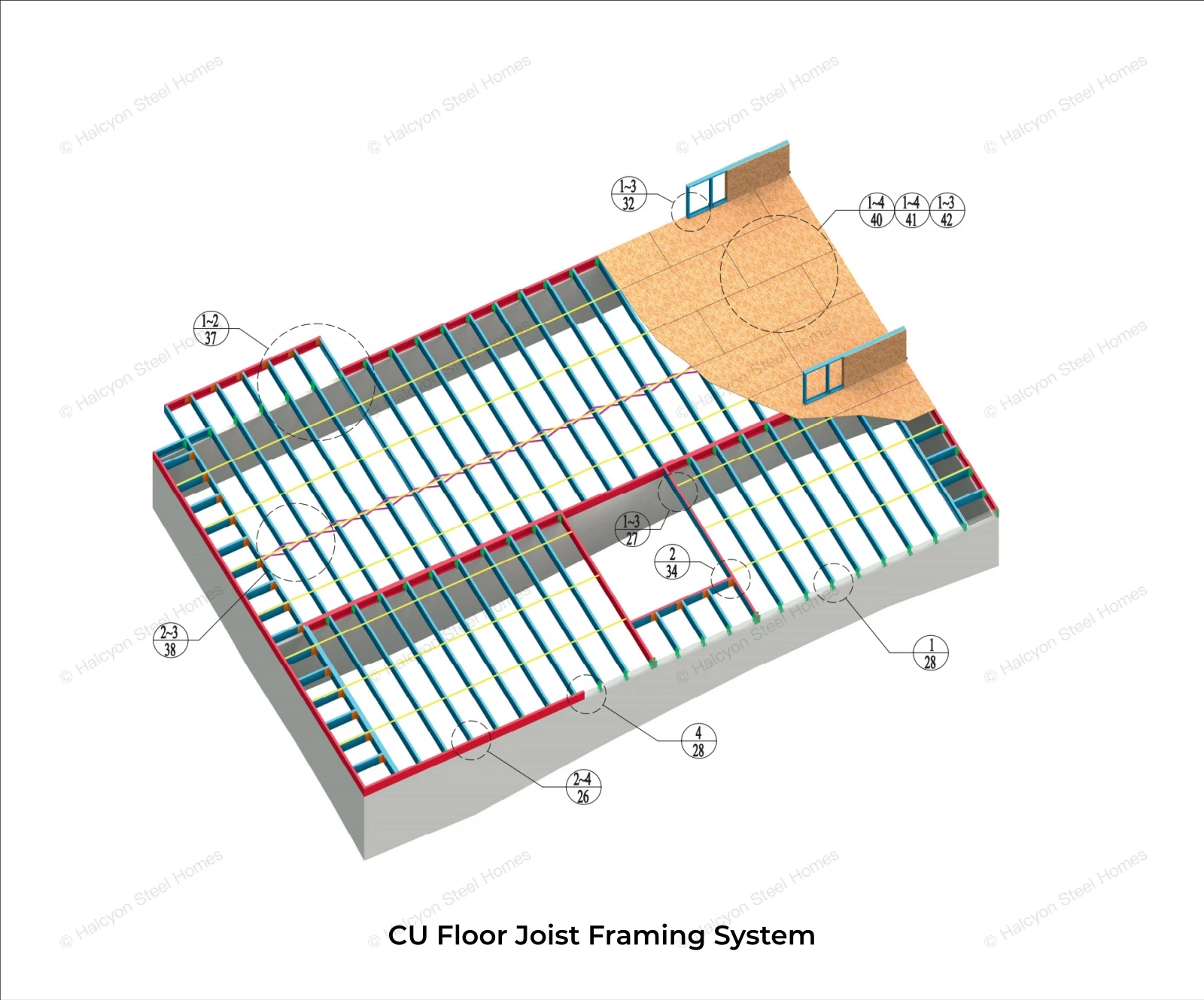

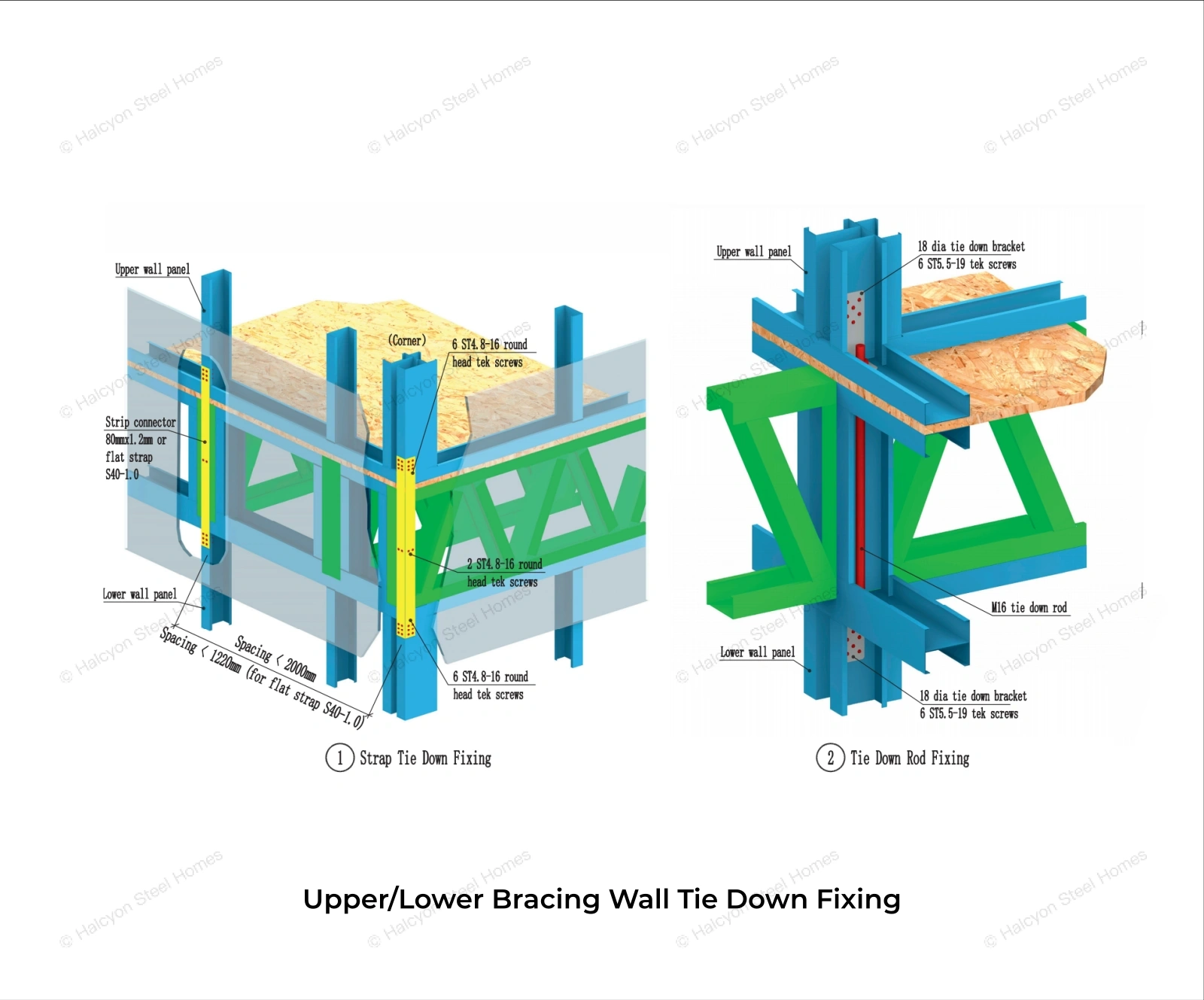

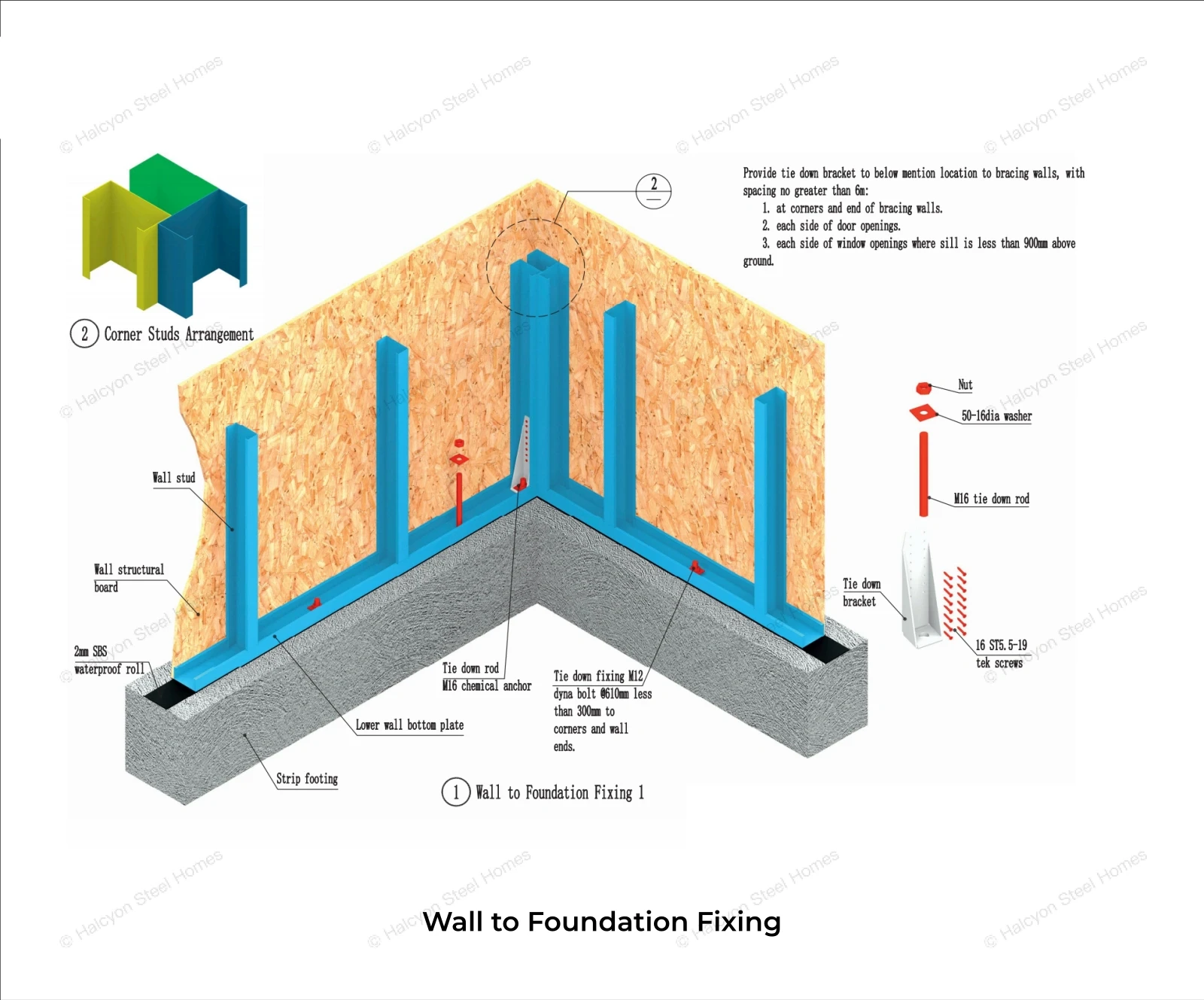

The eight remaining drawings keep their original technical notes inside the image. Click any drawing to open the large view and review the truss, lintel, bracing, column, foundation or floor connection detail.

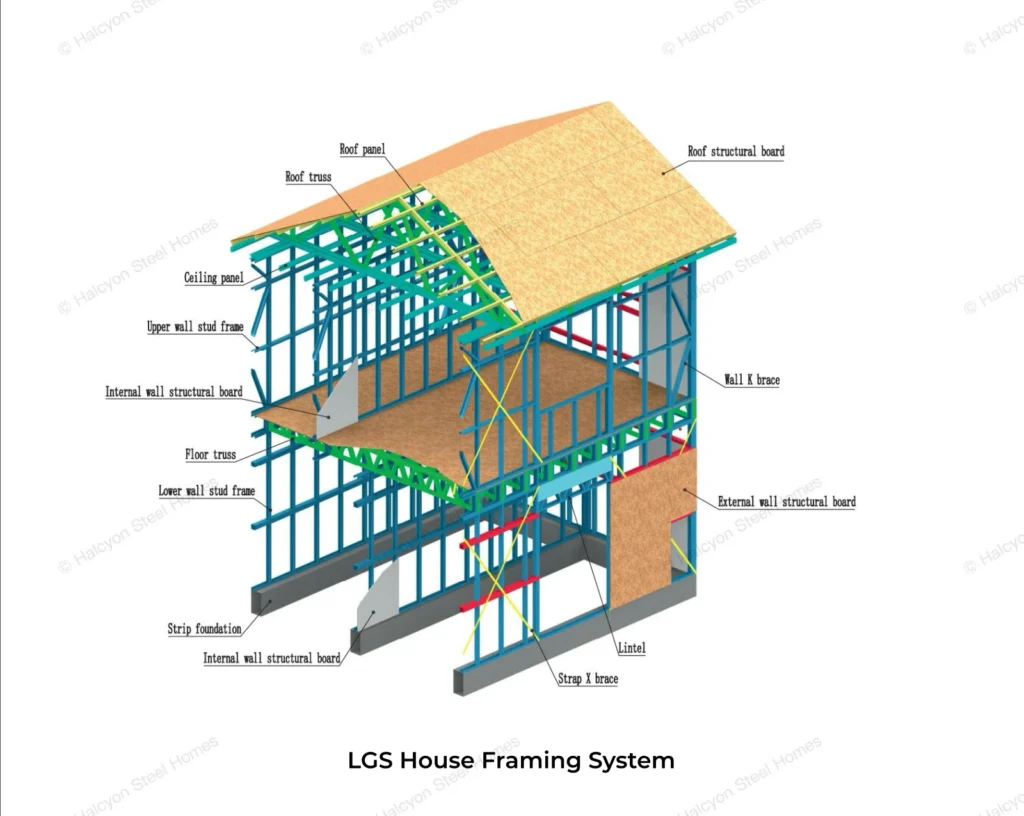

The structural frame is the base for every later wall, roof and floor material layer. Once the structure is confirmed, insulation, sheathing, waterproofing and finish materials can be adjusted for climate and budget without losing the load path logic.
Send drawings, project location, coastal exposure, storey height, spans and local load requirements. We can review the profile system, corrosion-resistant material scope and anti-uplift connection package before quotation.
